Nuts/Bolts
THE SEALING NUTS RANGE
The sealing nuts are adaptable to your application: size (metric or imperial, silicone seal, material (A2 or A4 stainless steel), ...
SPECIAL FEATURES OF NUTS

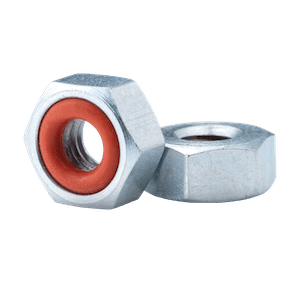

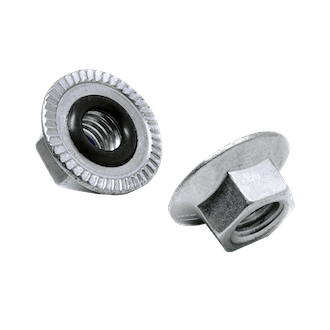

The sealing nuts come with an integrated silicone seal. They are used like standard nuts, with standard screws, bolts and threaded rods if sealing must be done on both sides of the assembly.
Your systems are airtight, watertight, dustproof, oiltight, even under internal or external pressure…. and these nuts give them great resistance to vibrations thanks to the elasticity provided by the joint.
Like all our products, these nuts can be delivered to you with waterproof elastomer seals other than silicone rubber as standard: fluorosilicone, Buna N (nitrile), Neoprene, EPDM.
Benefits :
- A single reference for a nut and a gasket,
- Easy assembly and time saving,
- Elimination of the risk of forgetting the seal during assembly or in the event of maintenance.
- They are reusable, without affecting the sealing quality.
Their reusability makes them ideal for applications that may require periodic maintenance or adjustments. There is no need to systematically replace them, since they are reusable.
TECHNICAL DATA OF SEALING NUTS
- Material: Low carbon steel, zinc chromate plated
- Not American Class 2B or Metric Class 6H
- Seal: Silicone conforming to AA-59588, Class 3A, GR60, Red or other optionally.
- Operating temperature: -75°c to 204°c
- Pressure: up to 1400 bars
- Protection: IP66 / IP68
- Lifespan: more than 25 years.
- Reusable up to 10 times
Contact us for any technical requests
