Toggle switch guards
PROTECTIONS FOR LEVER SWITCHES
These caps or protections are specially designed to protect all types of lever switches. These are ON/OFF switches, 3 positions or evencircuit breakers. There are two types of configurations for these toggle switch guards. Configuration A or B covers the entire lever and configuration C or D stops at the base of the lever. This second configuration is used when it is a custom lever that does not fit standard configurations.
SPECIAL FEATURES OF PROTECTIONS FOR LEVER SWITCHES
Seal protectors are designed to protect all types of toggle switches. They adapt according to the height and diameter of the lever.
The part between the fixing (nut) and the top of the cap is designed to provide the flexibility necessary for activating the switch.
In the case of an open guard, the base of the switch lever is compressed by the cap.
Open caps are identified in the table below with designs C and D
The table below lists all possible configurations for caps/protections for toggle switches.
| Reference | Thread | Not | Design | Base width | Max diameter of the lever | Height | Material | Durometer |
|---|---|---|---|---|---|---|---|---|
| OP716 | UNC | 7/16-28 UNEF-2B | D | .625H | 0.250" | 0.55" | Silicone A-A-59588 | 50 |
| OP715 | UNC | 15/32-32 UNS-2B | D | .625H | 0.250" | 0.55" | Silicone A-A-59588 | 50 |
| OP717 | UNC | 7/16-32 UN-2B | D | .625H | 0.250" | 0.55" | Silicone A-A-59588 | 50 |
| TH601 | UNC | 15/32-32 UNS-2B | C | .625H | 0.100" | 0.412" | Silicone A-A-59588 | 50 |
| TH602 | UNC | 1/4-40 UNS-2B | C | .375H | 0.125" | 0.260" | Silicone A-A-59588 | 50 |
| TH603 | UNC | 15/32-32 UNS-2B | B | .625H | 0.219" | 0.85" | Silicone A-A-59588 | 50 |
| TH604 | Metric | M12 x 1.00 | C | .625H | 0.100" | 0.412" | Silicone A-A-59588 | 50 |
| TH605 | UNC | 1/4-40 UNS-2B | A | .375H | 0.071" | 0.500" | Silicone A-A-59588 | 50 |

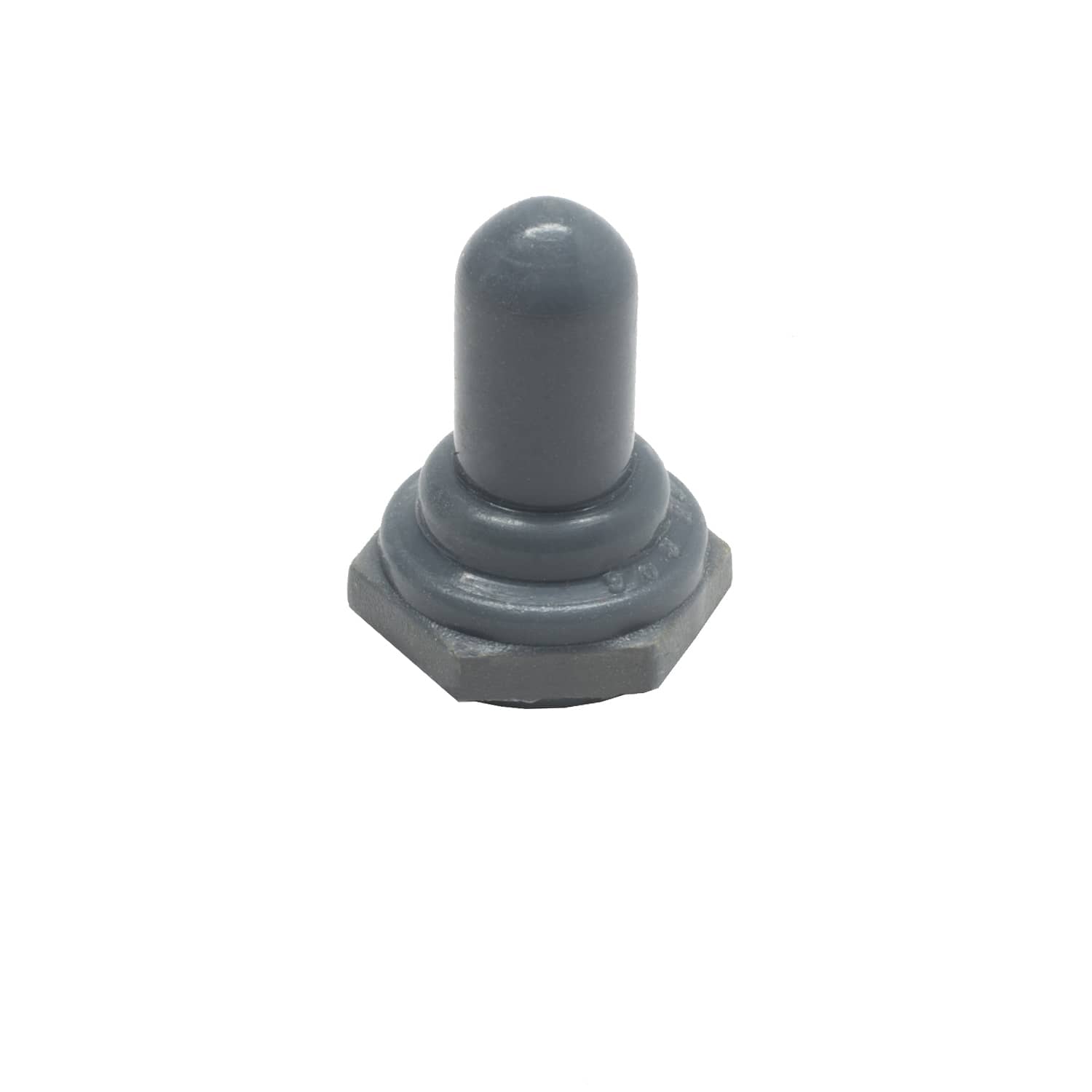

| TH606 | UNC | 15/32-32 UNS-2B | A | .625H | 0.219" | 0.885" | Silicone A-A-59588 | 50 |
| TH607 | UNC | 15/32-32 UNS-2B | A | .625H | 0.219" | 1.09" | Silicone A-A-59588 | 50 |

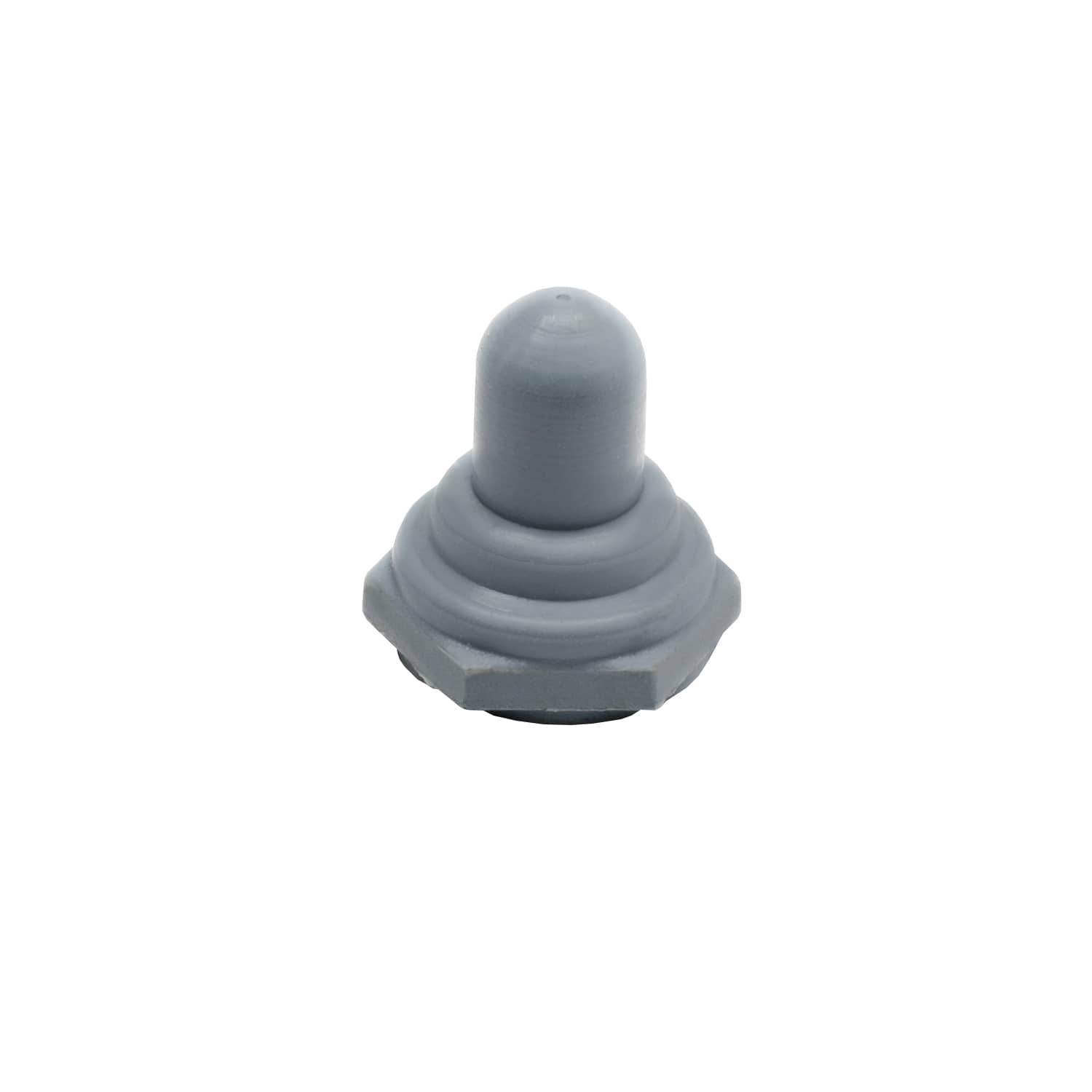

| TH608 | UNC | 15/32-32 UNS-2B | A | .625H | 0.204" | 0.745" | Silicone A-A-59588 | 50 |
| TH609 | UNC | 15/32-32 UNS-2B | A | .625H | 0.219" | 0.945" | Silicone A-A-59588 | 50 |
| TH610 | Metric | M12 x 1.00 | A | .625H | 0.219" | 0.945" | Silicone A-A-59588 | 50 |
| TH611 | Metric | M12 x 1.00 | A | .625H | 0.219" | 0.885" | Silicone A-A-59588 | 50 |
| TH612 | UNC | 15/32-32 UNS-2B | A | .625H | 0.400" | 1.3" | Silicone A-A-59588 | 50 |
| TH613 | Metric | M12 X 0.75 | A | .625H | 0.219" | 0.945" | Silicone A-A-59588 | 50 |
| TH614 | UNC | 1/4-32 UNEF-2B | A | .375H | 0.071" | 0.500" | Silicone A-A-59588 | 50 |
| TH615 | UNC | 7/16-32 UN-2B | C | .625H | 0.240" | 0.412" | Silicone A-A-59588 | 50 |
| TH616 | UNC | 7/16-32 UN-2B | A | .625H | 0.219" | 0.885" | Silicone A-A-59588 | 50 |
| TH617 | Metric | M12 X 0.75 | A | .625H | 0.219" | 0.885" | Silicone A-A-59588 | 50 |

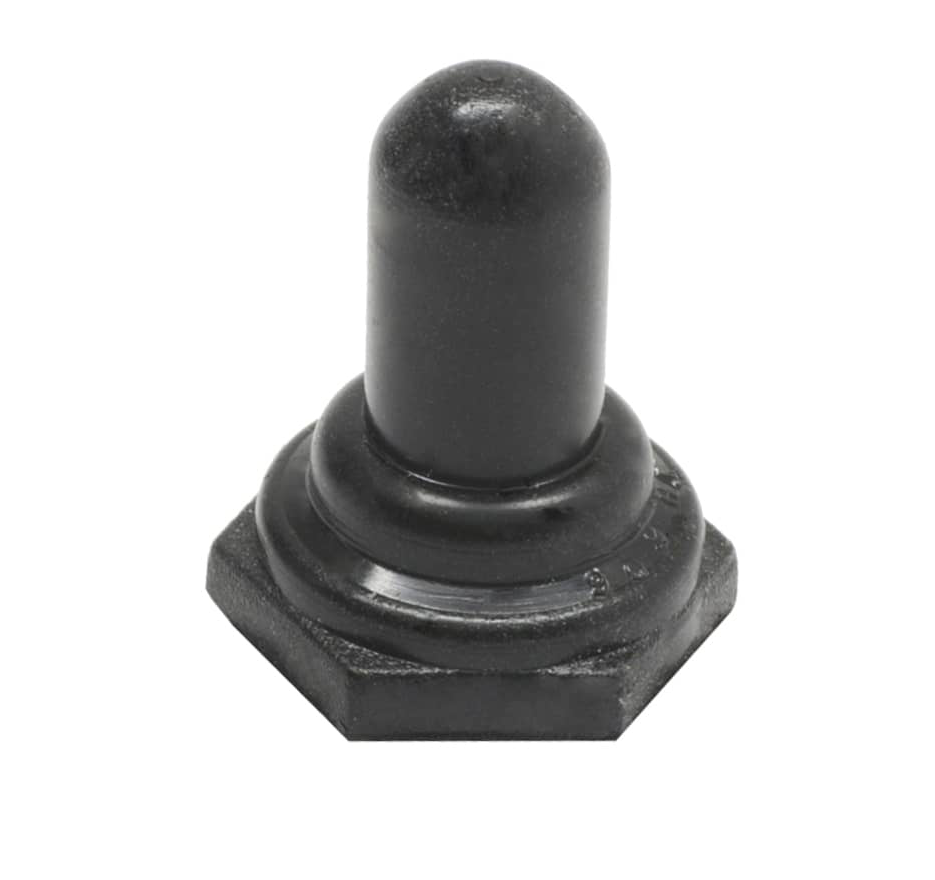

| TH618 | UNC | 1/2-32 UNS-2B | A | .625H | 0.219" | 0.885" | Silicone A-A-59588 | 50 |
| TH619 | UNC | 1/2-32 UNS-2B | C | .625H | 0.240" | 0.412" | Silicone A-A-59588 | 50 |
| TH622 | UNC | 15/32-32 UNS-2B | A | .625H | 0.300" | 1.16" | Silicone A-A-59588 | 50 |

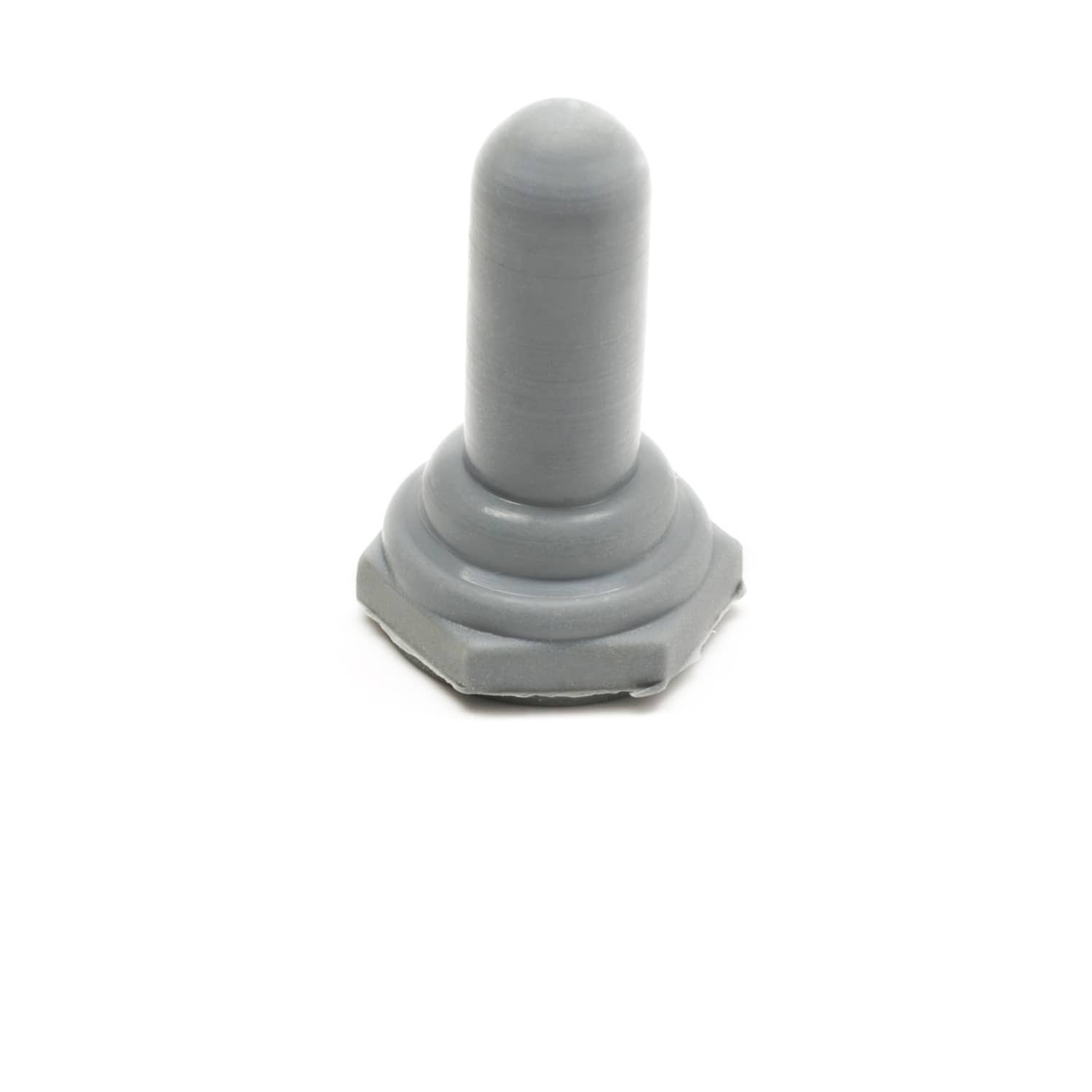

| TH624 | UNC | 1/2-32 UNS-2B | A | .625H | 0.219" | 1.09" | Silicone A-A-59588 | 50 |
| TH627 | UNC | 1/4-40 UNS-2B | A | 0.375H | 0.118" | 0.665" | Silicone A-A-59588 | 50 |
| TH628 | UNC | 10-48 UNS-2B | C | 0.323H | 0.037" | 0.228" | Silicone A-A-59588 | 50 |
| TH625 | UNC | 15/32-32 UNS-2B | A | 0.625H | 0.256" | 0.885" | Silicone rubber conforms to A-A-59588, GR 62 | 50 |
| TH626 | Metric | M12 X 0.75 | A | 0.625H | 0.219" | 1.09" | Silicone rubber conforms to A-A-59588, GR 62 | 50 |
