Waterproof hexagon socket screw
HEXAGONAL HOLLOW SCREW

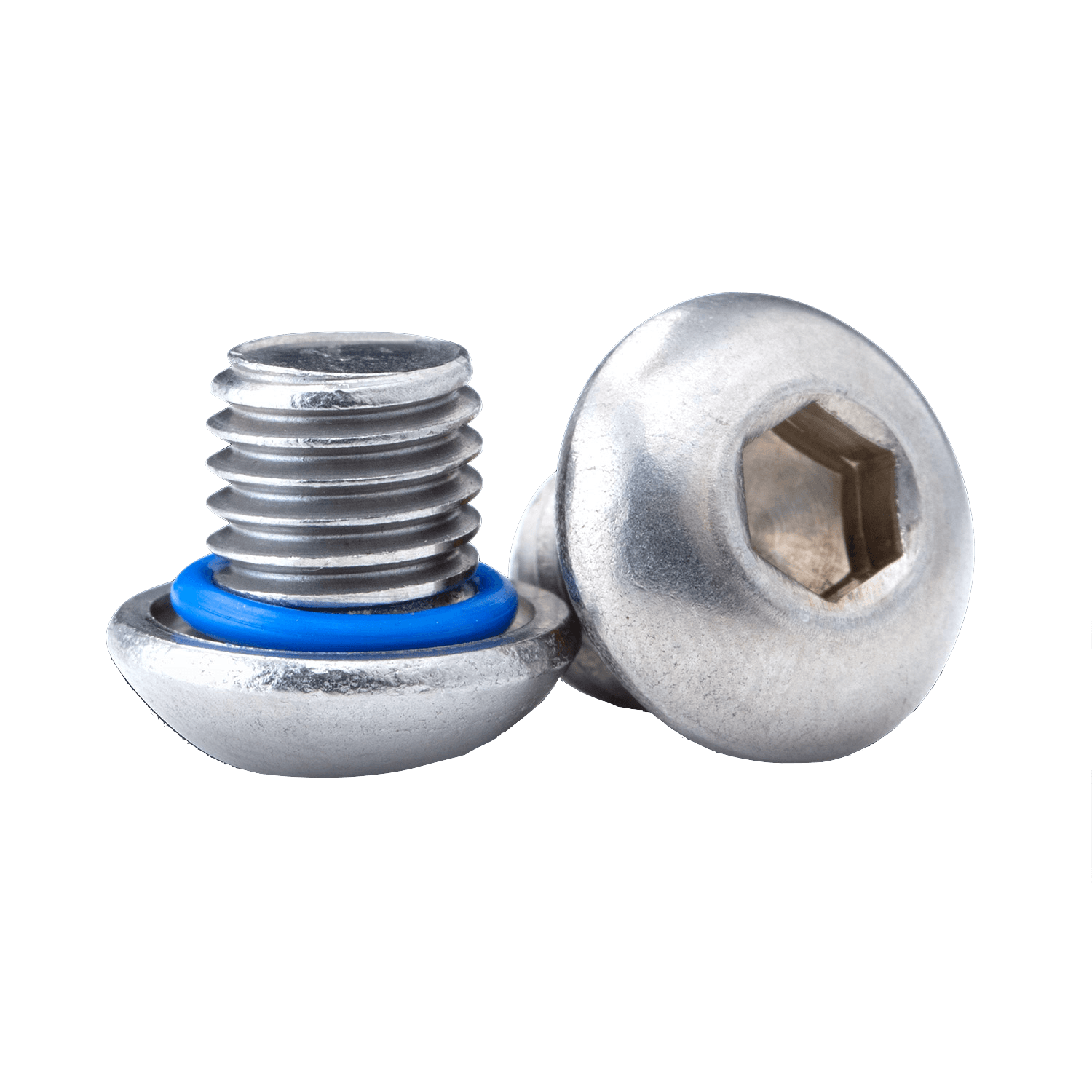

Cylindrical, rounded or flat screws are waterproof like our entire range. They are adaptable to your application:diameter, length, type of joint, steel A2, A4, ...
SPECIAL FEATURES OF HEXAGONAL HOLLOW SCREWS

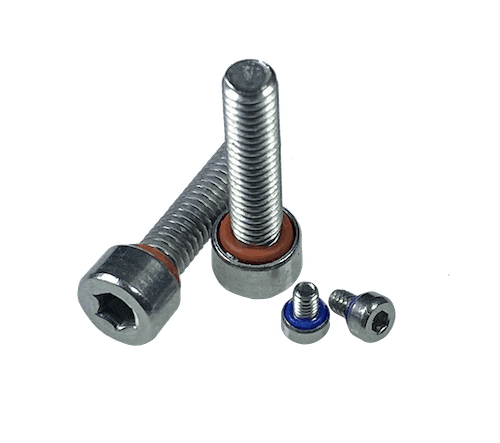

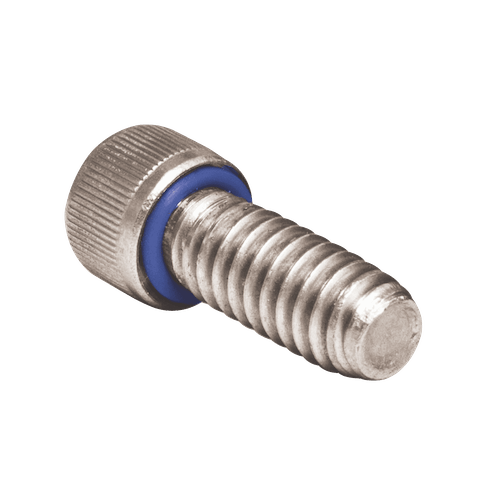

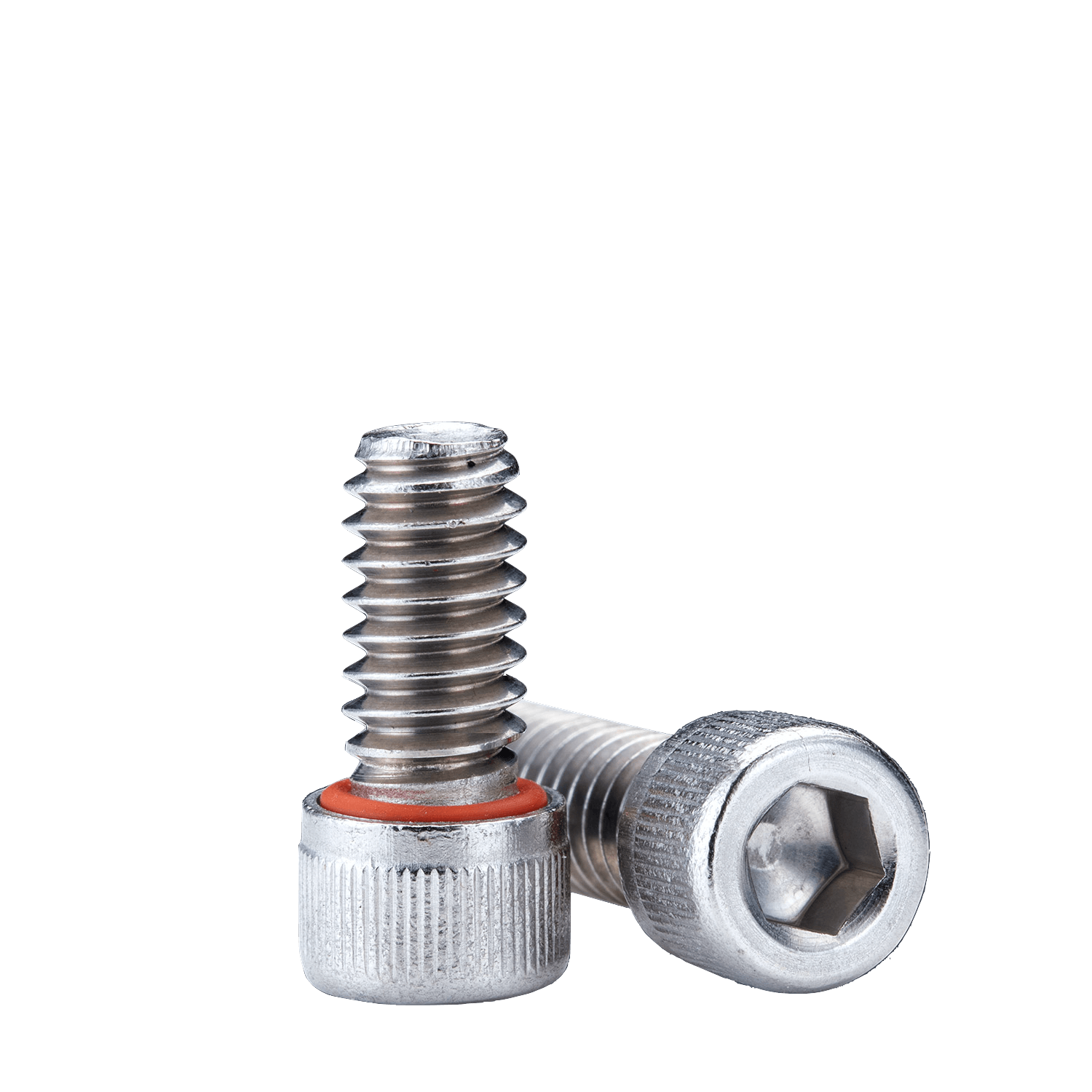

The CHC or BTR screw is the self-sealing screw with a flat cylindrical head, hollow hexagonal recess. These gasketed screws are designed to seal against air, water, lubricants and other liquid or gaseous contaminants.
The o-rings are pre-mounted on the screws. A single reference therefore allows sealing in addition to the screwing function thanks to a single reference.
HC SCREW SIZE
Standard sizes available range from M1.6 to M30 for lengths from 2 to 50 mm.
Flat and rounded cylindrical type screws can be metric or American pitch.
Other sizes are available upon request, please do not hesitate to contact us for specific requirements.
TECHNICAL DATA OF HC SCREWS
- Material: 18/8 stainless steel
- Elastomeric seal: Silicone conforming to AA-59588, Class 3A, GR50,
- Operating temperature: -100° C to 260° C (depending on the type of seal chosen)
- Resistant to splashes, salt spray, sunlight, ozone, weather, fungus, dust and most acids and lubricating oils.
- Lifespan: more than 25 years.
- Reusable up to 10 times
- Protection: IP66 / IP68
Contact us for any technical requests
