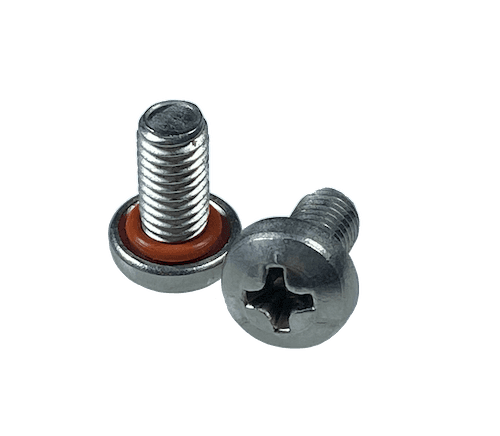

Cruciform waterproof screw
The rounded cylindrical screws are waterproof like our entire range. They are adaptable to your application:diameter, length, type of joint, steel A2, A4, ...
SPECIAL FEATURES OF PHILIPS SCREWS

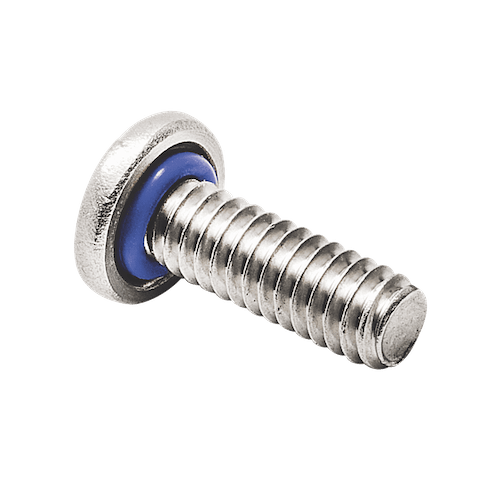

The Pan Head screw with a cross recess is the self-sealing screw with a rounded cylindrical head. Our gasketed screws are designed to seal against air, water, lubricants and other liquid or gaseous contaminants.
The o-rings are pre-mounted on the screws. A single reference therefore allows sealing in addition to the screwing function thanks to a single reference.
The rounded cylindrical type screws can be metric or American pitch.
Standard sizes available range from M1.6 to M30 for lengths from 2 to 50 mm.
Other sizes are available upon request, please do not hesitate to contact us for specific requirements.
TECHNICAL DATA OF CRUCIFOME IMPRESSION SCREWS
- Material: 18/8 stainless steel
- Elastomer seal: Silicone, Fluorosilicone, Buna, EPDM
- Operating temperature: -62° C to 219° C
- Pressure: up to 1300 bar (01 34 85 54 68 psig internal and external)
- Resistant to splashes, salt spray, sunlight, ozone, weather, fungus, dust and most acids and lubricating oils.
- Lifespan: more than 25 years.
- Reusable up to 10 times
- Protection: IP66 / IP68
Contact us for any technical requests
